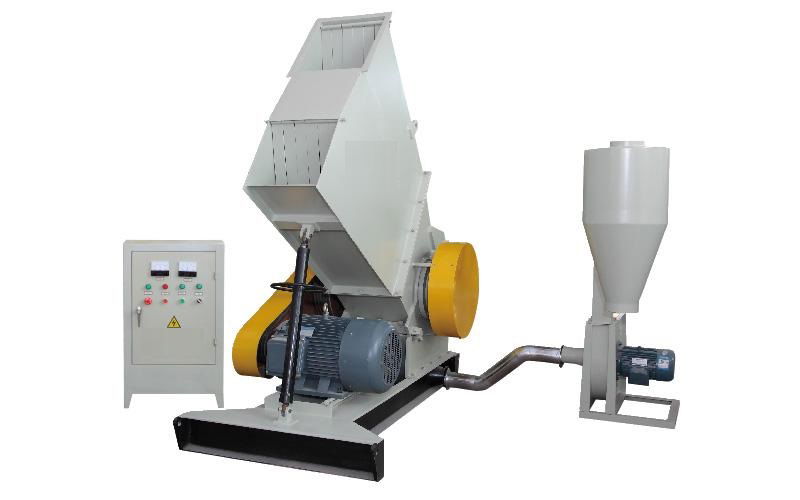

Máquina trituradora de tubos de perfil de plástico SWP PVC / PE / PPR
La trituradora de plástico de la serie SWP es principalmente adecuada para triturar varios perfiles y tuberías de plástico, incluidas puertas de plástico, placas de plástico, marcos de ventanas, ranuras para cables, láminas y tuberías de plástico. Para tuberías de PE de diámetro más largo y pequeño, PVC, tuberías de plástico PPR, no hay necesidad de cortar en secciones, y se pueden alimentar continuamente a la vez, y las tuberías de mayor diámetro y grosor también se pueden romper después de cortarlas en secciones.
- Envío:
Saber más
1) The SWP series pipe crusher is equipped with a fan conveying crushed material device, and the crushed particles are drawn from the machine by the suction fan, which is convenient for bagging and warehousing.
2) The use of high-quality alloy steel blades has stronger wear resistance and impact resistance compared with ordinary materials. The blades are detachable, and can be reground and used repeatedly after being blunt, which greatly reduces the cost. If necessary, our company can equip the corresponding sharpener.
3) Equipped with an opening device, and the large SWP model is equipped with an independent electric box control cabinet. Operation and maintenance are extremely convenient, and it is an ideal model for crushing various pipes and profiles.
Mail Tech Details
Model | SWP150 | SWP200 | SWP210 | SWP300 | SWP320 | SWP380 | SWP400 | SWP630 |
Rotating knife diameter(mm) | 150 | 200 | 210 | 300 | 320 | 380 | 400 | 630 |
Number of rotating knives (pieces) | 9 | 3 | 3 | 3 | 6 pairs/2 groups | 12 pairs/4 groups | 5 | 9pairs/3groups |
Rotating knife speed(r/min) | 730 | 870 | 500 | 640 | 650 | 650 | 500 | 480 |
Number of fixed knives (pieces) | 2 | 2 | 2 | 3 | 2 | 8pairs/4groups | 2 | 4pairs/2groups |
Screen aperture(mm) | φ8 | φ8 | φ8 | φ12orφ14 | φ8 | φ10 | φ10 | φ10 |
Crush Capacity(kg/h) | 60-200 | 50-110 | 80-120 | 50-250 | 250-350 | 100-400 | 350-450 | 700-850 |
Power(kw) | 5.5 | 4 | 4 | 37 | 11 | 27.5 | 13.2 | 44 |
Feeding port size(mm) | 150×200 | 240×350 | 250×230 | 260×1200 | 500×280 | 268×1120 | 375320 | 820610 |
Weight(kg) |
| 300 | 320 | 2000 | 1400 | 800 | 980 | 5000 |
Machine Size(mm) | 1200*820 *1160 | 1000*590 *1090 | 800*600 *1400 | 1550*1300 *1850 | 1613*1150 *1910 | 1800*1460 *1380 | 2500*1200 *2000 | 2500*1550 *2850 |
